FORM FOLLOWS FUNCTION
WHEELS THAT WORK
When planning and designing wheels for a custom off road vehicle there are several elements that must be taken into account for proper fitment and function. Each and every style of Alpha wheels is designed with the following mission critical components in mind.
DIAMETER AND WIDTH
Whether it be a 4Runner or a Jeep JK, careful consideration is taken when optimizing maximum contact patch and sidewall for every vehicle application we focus on. If you’re looking for excessively over-sized ‘rims’ with a disproportionate width, you’re probably in the wrong place. We maximize on performance and safety using correctly sized diameters and widths that do not interfere with the factory suspension geometry, components and body panels with fresh wheel designs. Our focus will be primarily on 17” wheels as we feel staying intimate with oem specs on ideal off-roading platforms. in other words, you won’t find us offering dubs for your 4runner.

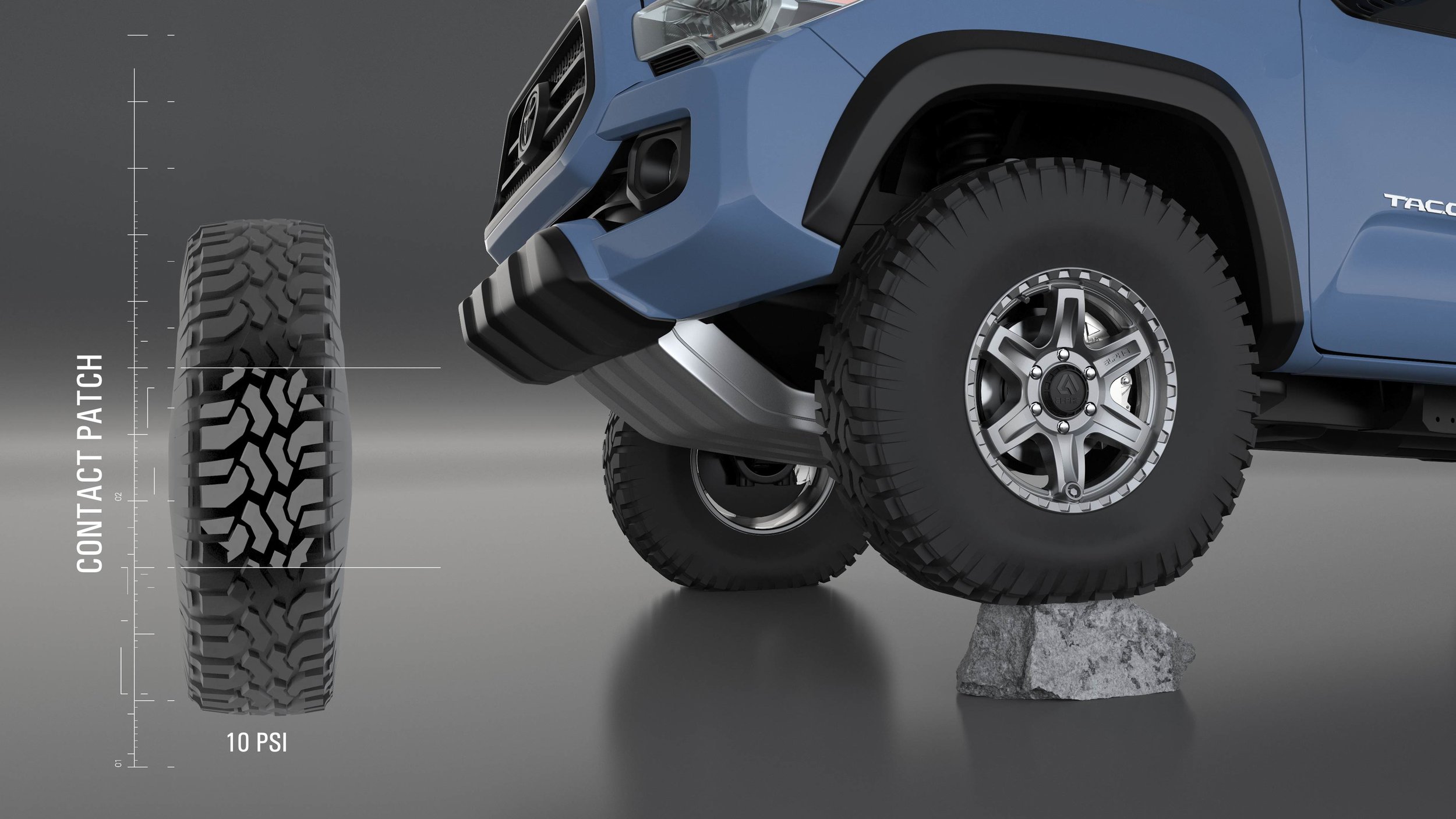

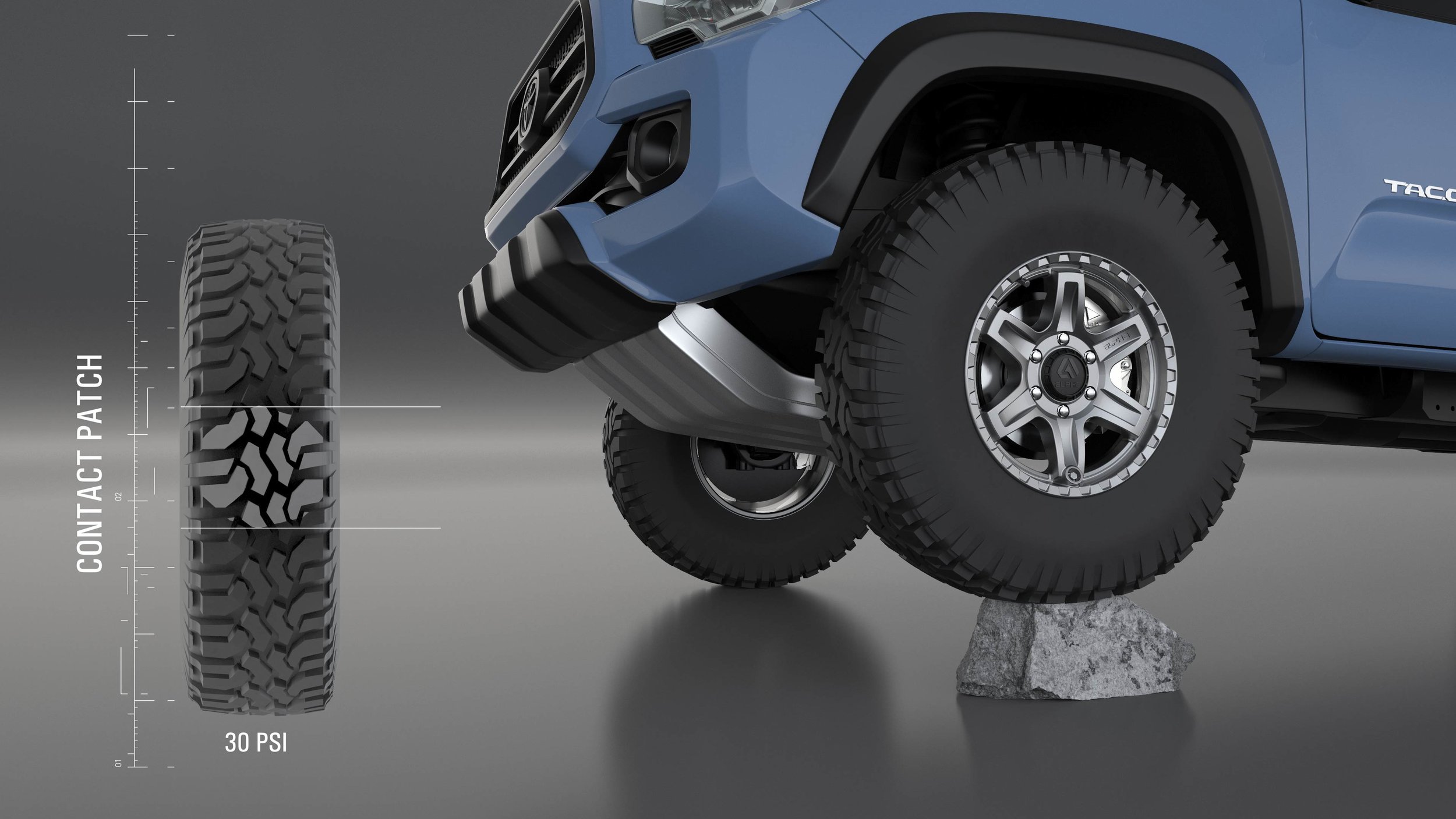

ONE OF THE MOST EFFECTIVE WAYS TO INCREASE MAXIMUM TRACTION IN OFF-ROAD ENVIRONMENTS IS TO LOWER TIRE PRESSURE ON ALL FOUR CORNERS ON YOUR CAPABLE multi-ply tire. MOST PEOPLE REFER TO THIS AS “AIRING DOWN”, HERE AT ALPHAEQUIPT WE LIKE TO CALL IT “PARTY TIME.” BY LOWERING TIRE PSI, THE TIRE’S CONTACT PATCH expands AS THE PRESSURE LOWERS which gives the driver to attack hazards and obstacles with increased traction. shown in the illustrations above, 30 psi is typically what is used on the street where the asphalt is more forgiving on giving grip to the vehicle. off-road environments often give the greater chance of tire slippage due to dynamic surfaces that include dirt, gravel, and sand. thus, a bigger contact patch shown at 10 psi would be optimal for these austere environments.

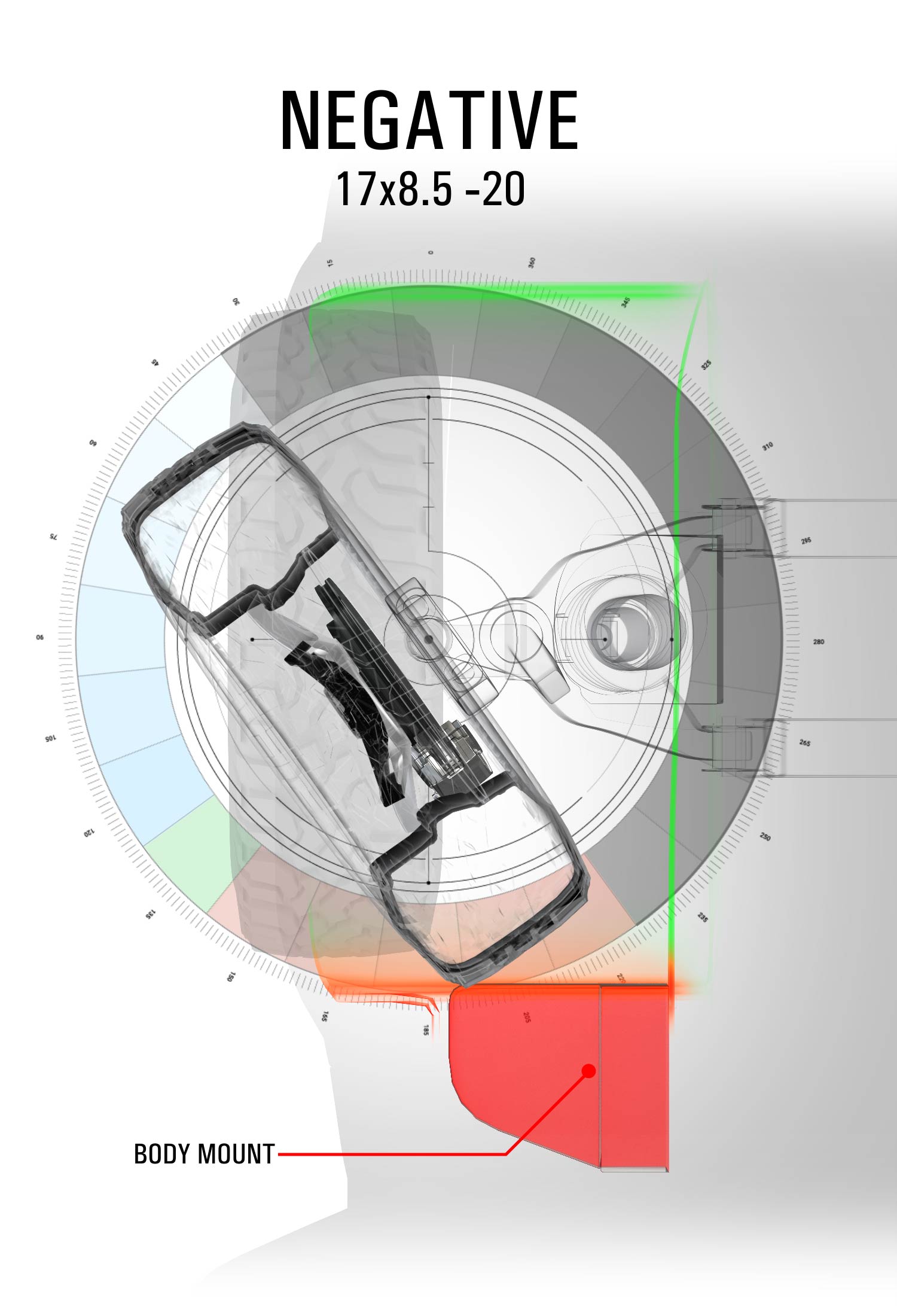

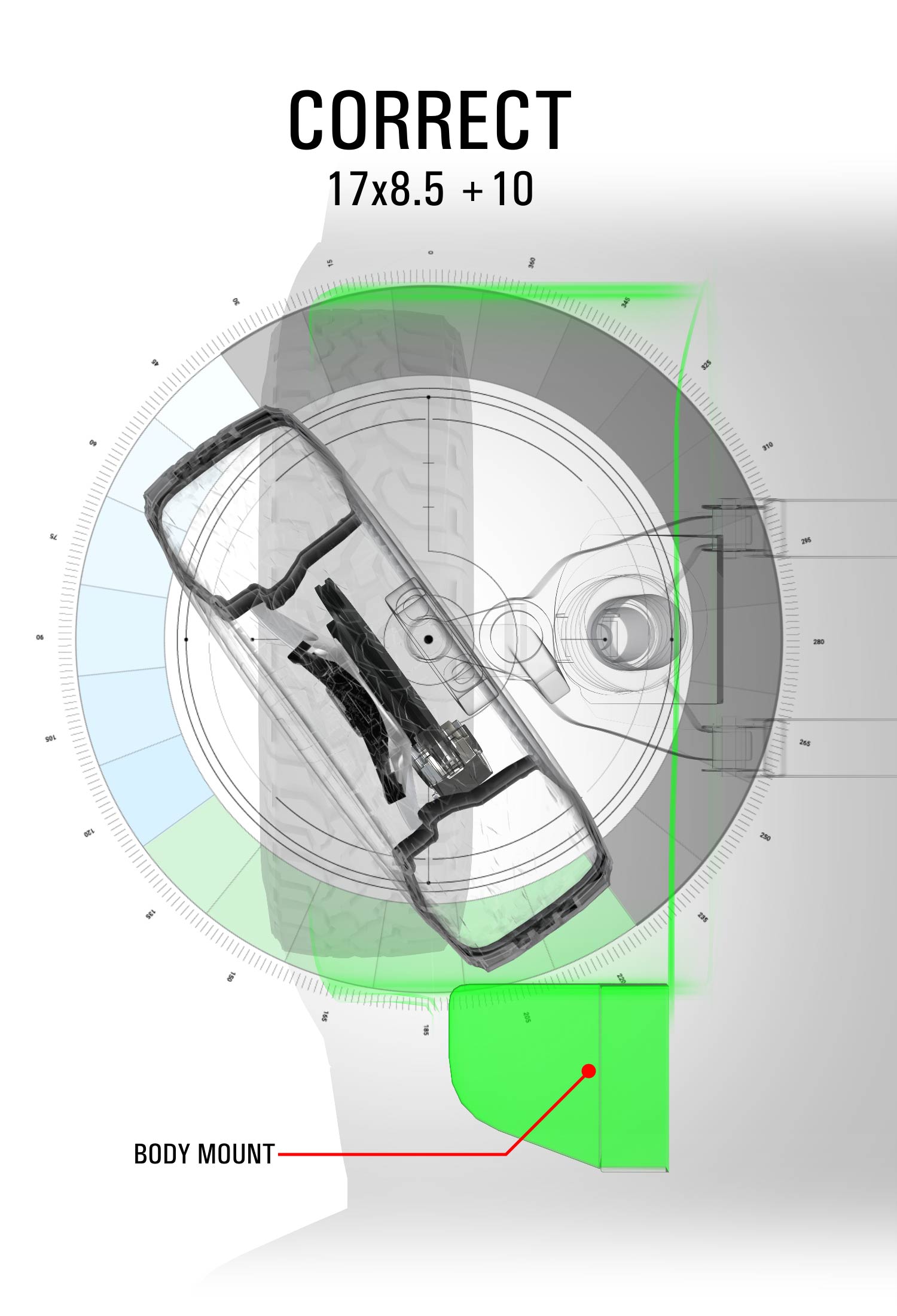

Alpha wheels are designed with offsets that will deliver maximum performance to your vehicle both on and off road and whether you’re headed in a straight line on the highway or crawling on a rock face in Moab. We understand people may like a deep dish whereas others want a flat face, we take both into consideration with a high emphasis on structural integrity and minimizing stress on the wheel bearings and hub. We strive on filling the fender properly while being functionally aggressive.

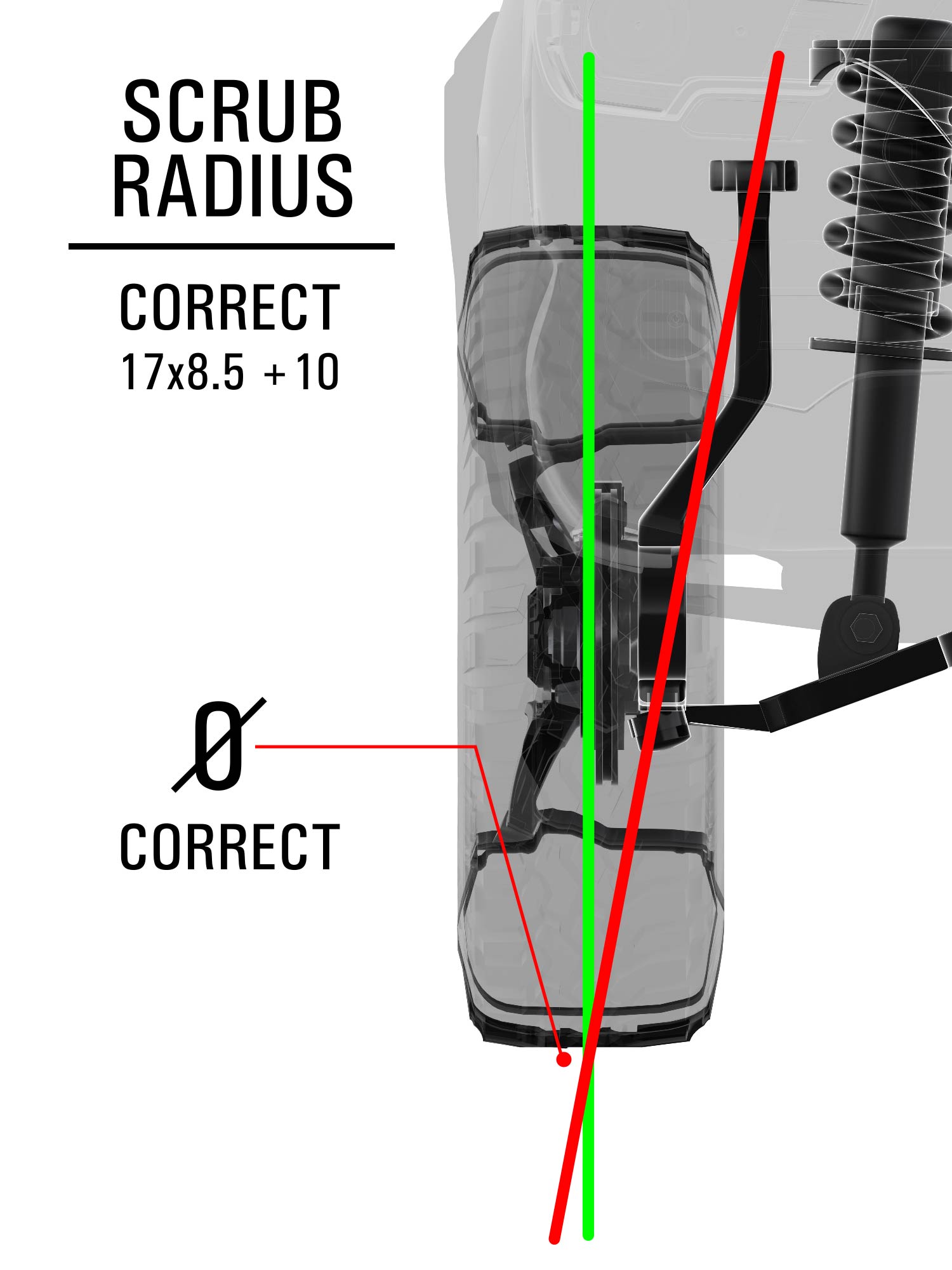

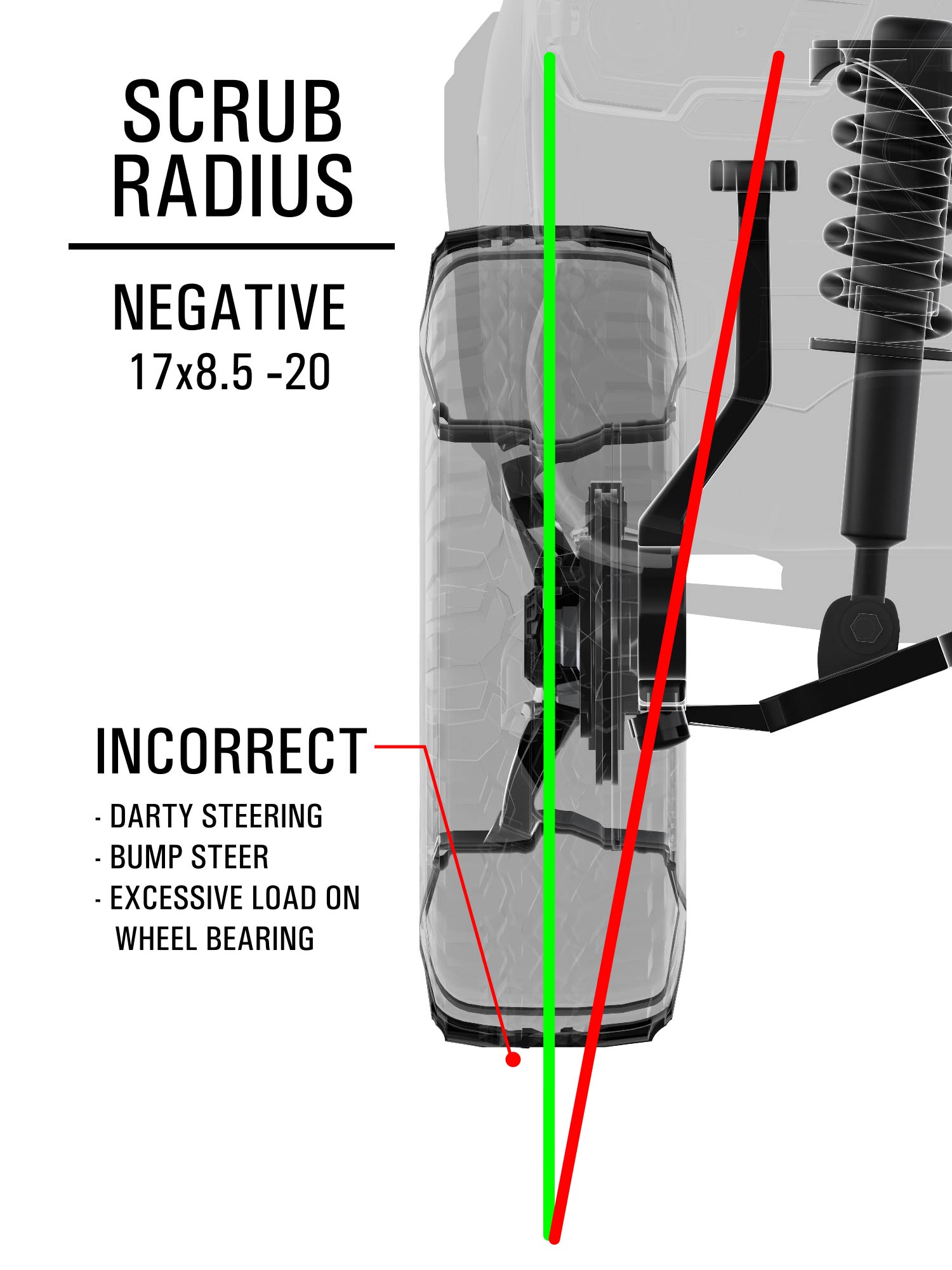

one of the most often overlooked variables in suspension and wheel fitment is scrub radius. in layman’s terms, it’s the point of intersection of the center of the tire and the imaginary line angle of the suspension column. in an ideal situation, the axis should cross right at the center of the tire to give zero scrub radius which would be in favor of driving dynamics. When the wheel offsets are too positive or negative, adverse effects such as excessive toe-in/out, tracking, and excess load on wheel bearings can occur. scrub radius is highly taken into consideration on every alphaequipt wheel spec, function over form takes priority in these fitments.

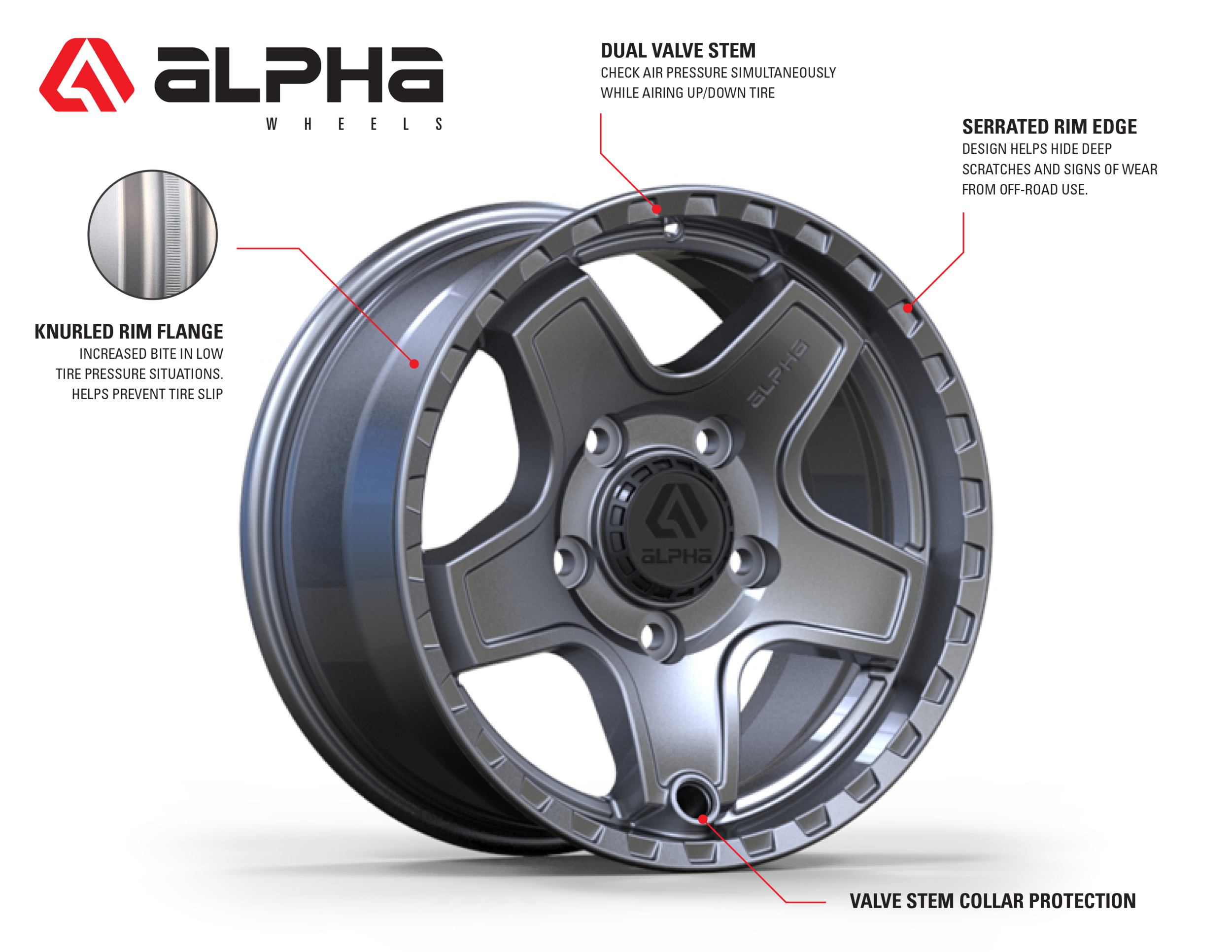

We take the utmost pride in building wheels for people to benefit from our innovations and experience for the past few decades in the automotive realm. from our dual valve system and knurling to our precise fitments, we are ready to be a part of all the adventures you plan on throwing these wheels and be happy to take on the challenges you give them.
